                                                                                                                                                                                                                                                                                                                                                                                                                R134a screw chiller industrial cooling, industrial water chiller 340kW, screw chiller with R134a refrigerant


Nombre del producto:	Enfriador de tornillo serie R134a	Capacidad de enfriamiento:	340kW - 2100kW
COP (carga completa):	5,50 - 5,85	El IPLV:	7,20 - 8,50
Refrigerante:	R134a (R513A opcional)	Evaporador:	Carcasa y tubo inundados
Condensador:	Carcasa y tubo con subenfriador	Entrada de agua de refrigeración:	30°C - 32°C
Control de la capacidad:	25%-100% continuo	Fuente de alimentación:	380V/3PH/50Hz
Nivel de ruido:	75-88dB(A)

Nombre del producto:	Enfriador de tornillo serie R134a
Capacidad de enfriamiento:	340kW - 2100kW
COP (carga completa):	5,50 - 5,85
El IPLV:	7,20 - 8,50
Refrigerante:	R134a (R513A opcional)
Evaporador:	Carcasa y tubo inundados
Condensador:	Carcasa y tubo con subenfriador
Entrada de agua de refrigeración:	30°C - 32°C
Control de la capacidad:	25%-100% continuo
Fuente de alimentación:	380V/3PH/50Hz
Nivel de ruido:	75-88dB(A)

R134a Series Screw Chiller 340kW - 2100kW Industrial-Grade Cooling Solution

The R134a Series Screw Chiller represents decades of expertise in large-capacity cooling solutions. Featuring industrial-grade semi-hermetic twin-screw compressors and high-efficiency flooded shell-and-tube heat exchangers, this series delivers reliable performance for medium to large commercial, industrial, and process cooling applications.

With cooling capacities ranging from 340kW to 2100kW, the R134a series offers versatile configurations including heat recovery units, ice storage systems, high-temperature water units, and large temperature differential models to meet diverse customer requirements.

The advanced oil management system with triple-stage oil separation ensures stable operation under all load conditions, while the precision capacity control system enables stepless modulation from 25% to 100% for optimal energy efficiency.

Features & Benefits

Industrial-Grade Screw Compressor - Semi-hermetic design reduces refrigerant leakage; 5-tooth/6-tooth asymmetric rotor profile with micron-level precision; Swedish SKF bearings ensure 50,000+ hours MTBF.
High-Efficiency Flooded Evaporator - Optimized refrigerant distribution with enhanced temperature field; liquid separator prevents compressor suction with liquid, improving reliability.
Advanced Condenser Design - Twisted-fin tube technology increases heat transfer coefficient; dual water circuit design with straight-through cleaning capability.
Triple-Stage Oil Separation System - In-compressor + condenser + dual ensures minimal oil carryover and reliable lubrication.
Stepless Capacity Control - 25%-100% stepless modulation precisely matches cooling output to load; advanced electronic expansion valve ensures rapid response.
Eco-Friendly R134a Refrigerant - Zero ozone depletion potential; optional R513A for even lower global warming potential; high thermal efficiency.
Low Noise Operation - Built-in compressor muffler; vibration-damping mountings reduce mechanical noise transmission.
Intelligent Control System - 7-inch touch screen with RS485/Modbus interface; 20+ protection functions; remote monitoring capability via iBUILDING platform.

Applications

Commercial Buildings - Large office complexes, shopping malls, and convention centers
Sports Facilities - Stadiums, sports halls, and swimming pools requiring large-capacity cooling
Industrial Process Cooling - Manufacturing, pharmaceutical, and food processing facilities
Data Centers - Mission-critical cooling for IT infrastructure
Telecommunications - Base station and network equipment cooling

Certifications & Standards

AHRI Certified - Air-Conditioning, Heating, and Refrigeration Institute performance certification

GB/T 18430.1 - Meets China's national standard for water chilling packages

ISO 9001 - Quality management system certification

ISO 14001 - Environmental management system certification

CE Marking - European safety, health, and environmental compliance

Technical Specifications

Parameter	Specification
Cooling Capacity	340kW - 2100kW
COP (Full Load)	5.50 - 5.85
IPLV	7.20 - 8.50
Refrigerant	R134a (Optional R513A)
Evaporator	Flooded Shell-and-Tube
Condenser	Shell-and-Tube with Subcooler
Chilled Water Inlet	12°C
Chilled Water Outlet	7°C
Cooling Water Inlet	30°C - 32°C
Capacity Control	25%-100% Stepless
Compressor	Semi-Hermetic Twin-Screw
Power Supply	380V/3Ph/50Hz
Noise Level	75-88 dB(A)
Water Side Pressure	1.0 MPa (Higher on request)

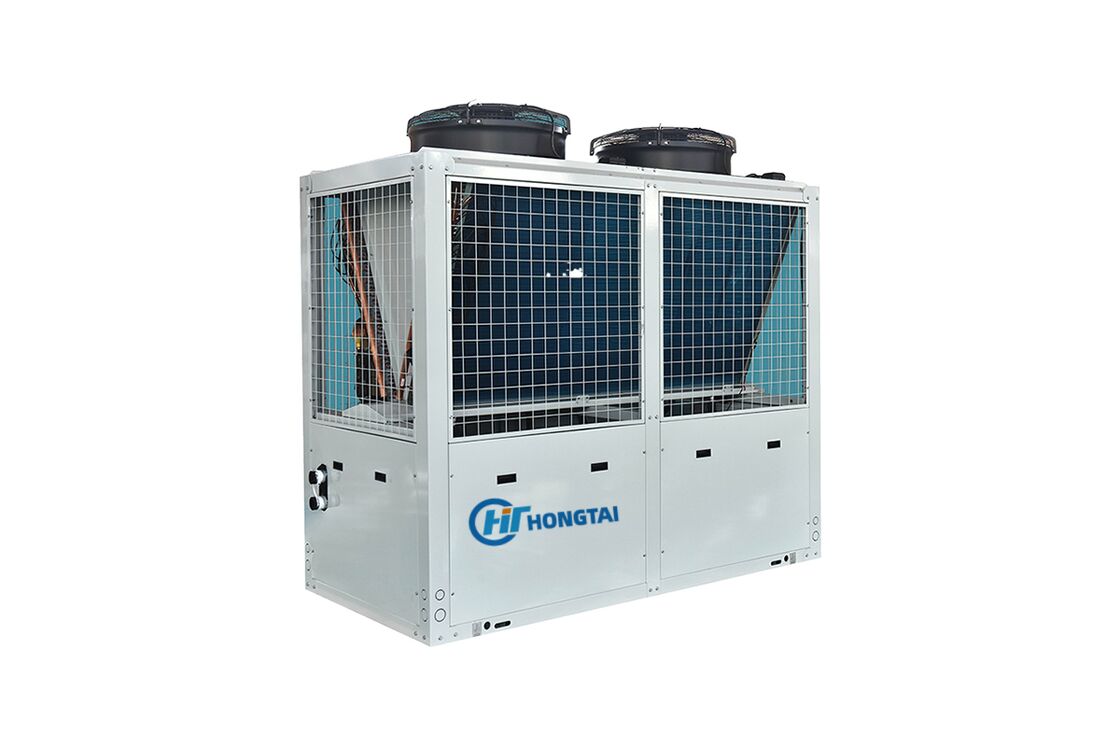

Product Images
